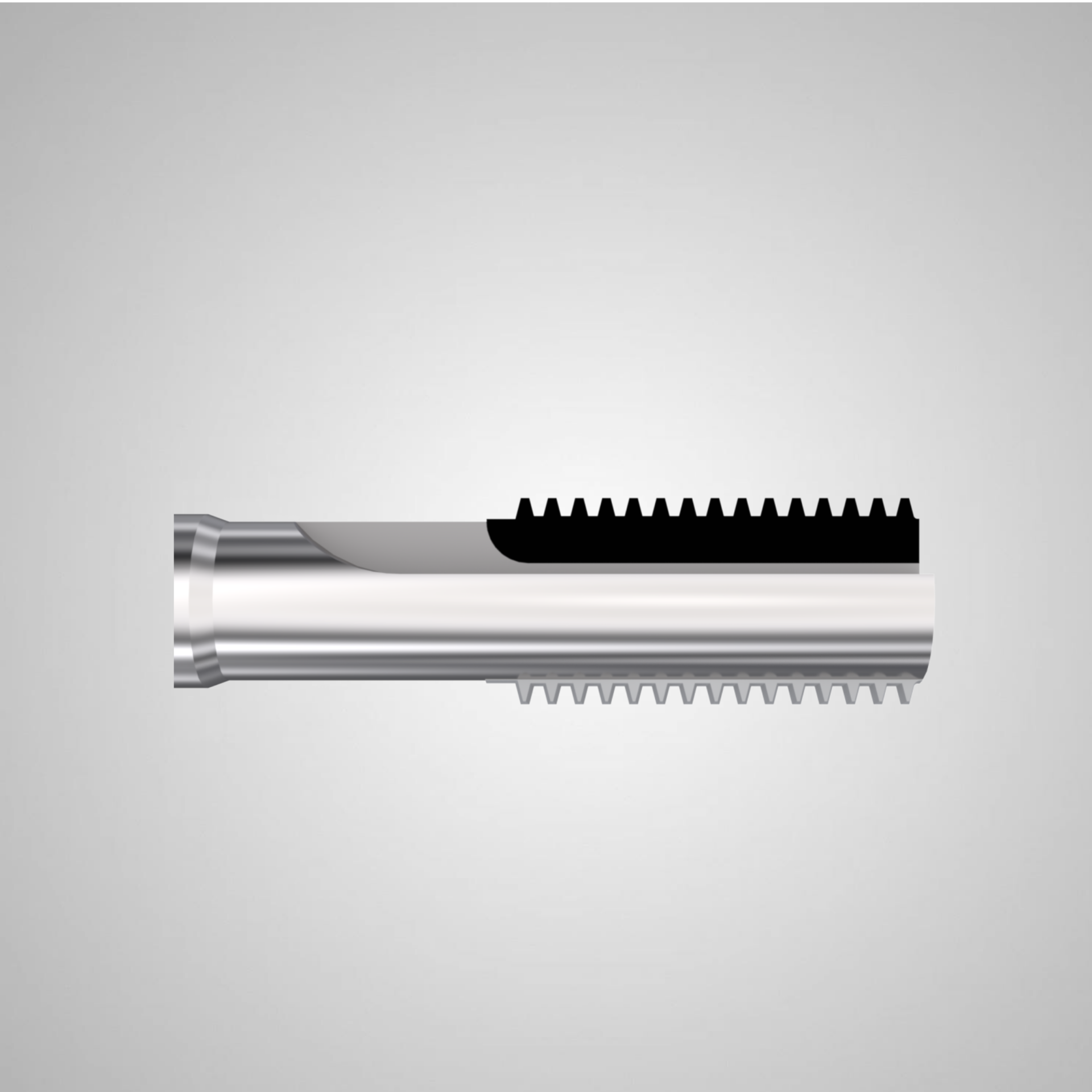

UNC Diş

UNC Diş

Category
PCD Tooth Mills
Stock Code
37EC3DCB44
Product information
Product information




 *PCD cutting edges and long tool life.
 *Shiny surface, high precision.
*High speed processing capability.
 *Improvement in control and processing times thanks to long life.
 *Production option in desired diameter, length and pitch.


Tool Diameter (ØD) External TPI My name Shaft Diameter (ØD2) S L3 L Z
4.8 UNC 1/4 20 1,270 6 8 14 60 1
6 UNC 5/16 18 1,411 6 10 16 60 1
7.5 UNC 3/8 16 1,587 8 12 20 65 2
9 UNC 7/16 14 1,814 10 14 22 70 2
10.5 UNC 1/2 13 1,954 10 16 26 80 2
11.7 UNC 9/16 12 2,117 12 18 30 80 2
13.5 UNC 5/8 11 2,309 16 22 34 84 2
16 UNC 3/4 10 2,540 16 26 38 90 2
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
